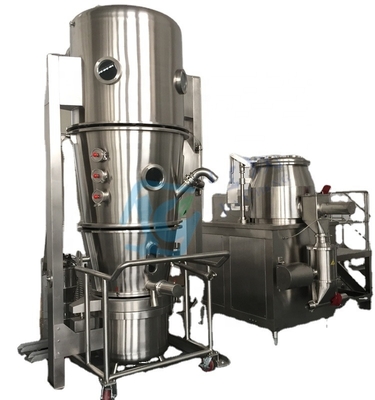

Medicine processing factory direct sales FL fluidizing bed dryer/FBD granulator for instant coffee

1 set
MOQ
Medicine processing factory direct sales FL fluidizing bed dryer/FBD granulator for instant coffee
Caracteristicas Galería Descripción de producto Pida una cita
Caracteristicas
Especificaciones
Type: Fluid Bed Drying Equipment
Application: Medicine Processing, Chemicals Processing, Plastics Processing, Food Processing, Fine Powder to granulate
Condition: New
Key Selling Points: Energy saving
Warranty: 1 Year
Weight (KG): 100
Applicable Industries: Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Advertising Company
Showroom Location: None
Marketing Type: Hot Product 2019
Machinery Test Report: Provided
Video outgoing-inspection: Provided
Warranty of core components: 1 Year
Core Components: Bearing, Pump, Gear, Motor, Gearbox, PLC, Engine, Pressure vessel
After-sales Service Provided: Online support, Video technical support, Free spare parts, Field installation, commissioning and training, Field maintenance and repair service
After Warranty Service: Field maintenance and repair service, Online support, Spare parts, Video technical support
Local Service Location: None
Certificación: CE, ISO14001/ISO9001, AAA
Product name: Fluid bed dryer
Material: 304 Stainless Steel
Heating source: Steam/electricity/natural gas
Model Number: FL Series
Información básica
Certificación: CE, ISO14001/ISO9001, AAA
Model Number: FL Series
Pago y Envío Términos
Packaging Details: Suitable for export package
Descripción de producto
Product Description

Factory cheap price FL Fluidizing bed dryer/FBD granulator for instant coffee

Preface:

Fluid bed granulator is a combination of mechanical design and manufacture technology. Therefore hundreds of Granulating machines either for China or exported to USA, Japan, Indonesia, Iran and many other countries are designed in accordance with the process of raw materials. We have manufactured decade’s specifications and 150 different machines to meet different needs. These practical experiences will be very beneficial to customers.

Features:
The flow ability is improved and the dust is reduced, because of Granulator.

Because of powder granulating, its solubility is improved,

Mixing, Granulator and drying processes are completed in one step inside the machine.

The operation is safe because the anti-static filter cloth adopted.

It's safe for operator if explosion take place, because explosion device is adopted.

No need corner. Therefore the loading and unloading are quick, light and clean, meet the requirements of GMP.

Applications:
Pharmaceutical industry: tablet capsule, low sugar or no sugar granule of Chinese traditional medicine.
Foodstuff: cocoa, coffee, milk powder, juice of granulates, flavoring and so on.
Other industries: pesticide, feed, chemical fertilizer, pigment, dyestuff and so on.
Drying: powder or granule state of wet material
Coating: protection layer, color, controlled release, film, or bowels solved coating of granules and pills.

Principle:

The powder granule in vessel (fluid bed) appears in the state of fluidization. It is preheated and mixed with clean and heated air. At the same time the solution of adhesive is sprayed into the container. It makes the particles become granulating that contains adhesive. Being of unceasing dry through hot air, the moisture in the granulating is evaporated. The process is carried out continuously. Finally it forms ideal, uniform and porous granules.

Technical parameters:

Item

Unit

 Spec

3

5

15

30

60

120

200

300

500

1000

Vessel

Volume

L

12

22

45

100

220

420

670

1000

1500

3000

diameter

mm

300

400

550

700

1000

1200

1400

1600

1800

2200

Capability

Min

kg

1.5

4

10

15

30

80

100

150

250

800

Max

kg

4.5

6

20

45

90

160

300

450

750

1200

Fan

Velocity

m3/h

1000

1200

1400

1800

3000

4500

6000

7000

8000

13670

Pressure

mmH2O

375

375

480

480

950

950

950

950

950

1400

Power

kw

3

4

5.5

7.5

11

18.5

30

37

45

90

Steam consumption

kg/h

15

23

42

70

141

211

282

366

451

750

Compressed air expenditure

m3/min

0.9

0.9

0.9

0.9

1.0

1.0

1.1

1.5

3.0

4.0

Weight of the main body

kg

500

700

900

1000

1100

1300

1500

1800

2500

3500

Steam pressure

MPA

0.1-0.4

Temperature

adjustable at the range from room temperature to 120℃

Working time

min

45-90 decided in accordance with the properties of raw materials

Collect rate

%

≥99

Noise

dB(A)

≤75dB (A) when do installation, main machine is separated from fan.

Size (L×W×H)

1.0×0.6
×2.1

1.2×0.7
×2.3

1.25×0.9 ×2.5

1.6×

1.1 ×2.5

1.85×1.4 ×3

2.2×1.65
×3.3

2.34×1.7 ×3.8

2.8×2.0
×4.5

3×2.25
×5.0

4×2.8

×7.2
