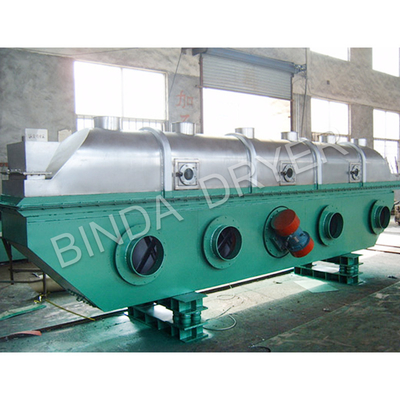

Motor drived vibration foot bath salt pet bath salt can be dried by linear vibrating fluid bed dryer

1 piece
MOQ
Motor drived vibration foot bath salt pet bath salt can be dried by linear vibrating fluid bed dryer
Caracteristicas Galería Descripción de producto Pida una cita
Caracteristicas
Especificaciones
Type: Drying equipment
Application: Medicine Processing, Chemicals Processing, Plastics Processing, Food Processing
Condition: New
Voltage: 220V/380V 50HZ
Power: 0.75 x 2k
Dimension(L*W*H): 3000 x 1350 x 1650
Key Selling Points: High material mixing uniformity
Warranty: 1 Year
Weight (KG): 1250
Applicable Industries: Pharmaceutical, chemical, food, metallurgy, etc
Showroom Location: None
Marketing Type: Ordinary Product
Machinery Test Report: Provided
Video outgoing-inspection: Provided
Warranty of core components: 1 Year
Core Components: Other
Evaporation Capacity(kg/h): 25
Heating Method: Steam, oil, electric etc
Material: SUS304, SUS304L, SUS316, SUS316L, Ti
Product name: Horizontal vibrating fluid bed dryer
Function: Drying
Feature: Vibration motor drived, High thermal efficiency, Fully enclosed
Advantage: High efficiency, safe time, easy operation
Installation: Video Guide
MOQ: 1 set
Payment: T/T, L/C
Delivery time: 30-50 days
Outlet Temperature: 40~70℃
Inlet Temperature: 70~140℃
Información básica
Pago y Envío Términos
Packaging Details: Customer's request (vibrating fluid bed dryer)
Supply Ability: 1000 Set/Sets per Month
Descripción de producto
Production information
Model
Area of fluidized-bed
(㎡)
Temperature of inlet air
(℃)
Temperature of outlet
(℃)
Capacity to vapor
moisture
(kg)
Vibration motor
Model
Power (Kw)
GZQ3×0.30
0.9
70-140
40-70
20-35
ZDS31-6
0.8×2
GZQ4.5×0.30
1.35
70-140
40-70
35-50
ZDS31-6
0.8×2
GZQ4.5×0.45
2.025
70-140
40-70
50-70
ZDS32-6
1.1×2
GZQ4.5×0.60
2.7
70-140
40-70
70-90
ZDS32-6
1.1×2
GZQ6×0.45
2.7
70-140
40-70
80-100
ZDS41-6
1.5×2
GZQ6×0.60
3.6
70-140
40-70
100-130
ZDS41-6
1.5×2
GZQ6×0.75
4.5
70-140
40-70
120-140
ZDS42-6
2.2×2
GZQ6×0.9
5.4
70-140
40-70
140-170
ZDS42-6
2.2×2
GZQ7.5×0.60
4.5
70-140
40-70
130-150
ZDS42-6
2.2×2
GZQ7.5×0.75
5.625
70-140
40-70
150-180
ZDS51-6
3.0×2
GZQ7.5×0.9
6.75
70-140
40-70
160-210
ZDS51-6
3.0×2
GZQ7.5×1.2
9
70-140
40-70
200-260
ZDS51-6
3.0×2

PRODUCT DESIGN 1

The drying speed is fast, the surface area of thematerial liquid is greatly increased after atomiza-tion, in the hot air flow,95%6-98% of the water canbe evaporated in an instant, the drying time is onlya few seconds, especially suitable for the drying ofheat-sensitive materials.





PRODUCT DESIGN 2
Amount of air , heating temperature, time ofmaterial sticking on the belt and velocity offeeding material can be adjusted in order toobtain the best drying ef fect.



PRODUCT DESIGN 3
Equipment's con guration is very exible. ltcan use the netlike belt washing systemand cooling raw material system. .Unique air dividing device, it makes hot airdistribute uniformly; this can guaranteeproducts' quality.
