Inicio /Productos/Secador en lecho fluidificado horizontal/Medicine Curing ZLG Series Glass Chemical Fiber Drying Equipment Citric Acid Vibrating Fluidized Bed Dryer

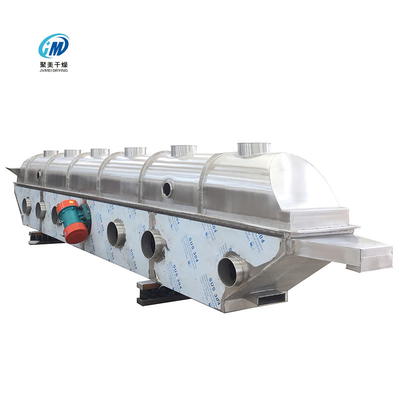

Medicine Curing ZLG Series Glass Chemical Fiber Drying Equipment Citric Acid Vibrating Fluidized Bed Dryer

1.0 Pieces
MOQ
Medicine Curing ZLG Series Glass Chemical Fiber Drying Equipment Citric Acid Vibrating Fluidized Bed Dryer
Caracteristicas Galería Descripción de producto Pida una cita
Caracteristicas
Especificaciones
Type: Fluid Bed Drying Equipment
Application: Medicine Processing, Chemicals Processing, Food Processing
Condition: New
Key Selling Points: Automatic
Warranty: 1 Year
Weight (KG): 300
Applicable Industries: Food & Beverage Factory, Farms, Construction works
Showroom Location: None
Marketing Type: Hot Product 2021
Machinery Test Report: Provided
Video outgoing-inspection: Provided
Warranty of core components: 1 Year
Core Components: Bearing, Pump, PLC
Heating Method: Steam Heating
Material: SUS304, SUS304
Product name: Vibrating Fluidized Bed Dryer
Advantage: Easy Operation High Efficiency
Function: Food Vegetable Fruit Dehydrator
MOQ: 1 Set
Dryig process: Continuous Automatic Drying
After-sales Service Provided: Online support
After Warranty Service: Online support
Local Service Location: None
Información básica
Pago y Envío Términos
Packaging Details: The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
Descripción de producto

Product Features

1. Uniform fluidization state, no dead angle and fracture phenomenon, dry and cool products. 2. Good adjustability and wide applicability The thickness of raw materials and the speed of raw materials moving in the machine and the change of vibration range can be graded. 3. Small damage to the surface of the material, can be used for easy to break the material, if the particles are not normal, it can not play the process effect. 4. Fully sealed structure, can effectively prevent the cross contamination of raw materials and clean working environment. 5. High mechanical and heat, good energy-saving effect. Compared with common dryer, it can save 30-60% of energy.


Working Principle

Raw mate rial is feed into the machine from equipment inlet and move forward continuously along with the horizontal direction under vibratory power The hot air passes through fluidized—bed and exchange with raw materials。damp，then the wet air is dusted by cyclone separator and exhausted from air outlet，the d ried material is discharged through finished material outlet.


Application

It is applicable for drying，cooling of powder or granule state materials，such as citric acid，monosodiurn glutamate，borax，ammonium sulphur,compound fertilizer，piece of radish，bean，lees，seed，mine reside and sugar in chemical， pharmaceutlcal，foodstuff，grain，mine and so on industries.
Size
Area of Fluidized bed (M2)
Temperature of inlet air（℃）
Temperature of outlet (°C)
Capacity to vapormoisture (kg)
Vibration motor
Model
Power Kw
GZQ3x0.30
0.9
70-140
40-70
20-35
ZDS31-6
0.8x2
GZQ4.5x0.30
1.35
70-140
40-70
35-50
ZDS31-6
0.8x2
GZQ4.5x0.45
2.025
70-140
40-70
50-70
ZDS32-6
1.1x2
GZQ4.5x0.60
2.7
70-140
40-70
70-90
ZDS32-6
1.1x2
GZQ6x0.45
2.7
70-140
40-70
80-100
ZDS41-6
1.5x2
GZQ6x0.60
3.6
70-140
40-70
100-130
ZDS41-6
1.5x2
GZQ6x0.75
4.5
70-140
40-70
120-140
ZDS42-6
2.2x2
GZQ6x0.9
5.4
70-140
40»70
140-170
ZDS42-6
2.2x2
GZQ7.5x0.60
4.5
70-140
40-70
130-150
ZDS42-6
2.2x2
GZQ7.5x0.75
5.625
70-140
40-70
150-180
ZDS51-6
3.0x2
GZQ7.5x0.9
6.75
70-140
40-70
160-210
ZDS51-6
3.0x2
GZQ7.5x1.2
9
70-140
40-70
200-260
ZDS51-6
3.0x2






01
Stainless Steel Material, One Year Warranty


02
Customized Models Available


03
Smooth Running Effect

1、Q: Is Changzhou Jumei drying equipment Co.,Ltd. a manufacturer , trading company or a third party?

A:We are a manufacturer and our company was foundedin 2013.

2、Q:Where is your factory?

A: Jumei is located in Changzhou City，Jiangsu Prov-ince,China, which is located in the Yangtze River Delta,the economic center of China.

3、Q:How can l get to your factory?

A: You can fly directly to Shanghai Pudong or HongqiaoInternational Airport,and then take the high-speed rail-way to Changzhou station (it's only one hour by train fromShanghai to Changzhou). We arrange to meet you atChangzhou station to our company. Our company isabout 30 kilometers away from Changzhou station.
If you are in China now, you can take a plane to Chang-zhou Benniu airport, or take a train or bus to Changzhoudirectly.
We sincerely welcome you to visit our company at anytime.
